Personnel Elevators
Unique Features:
- Rectangular Masts for stability
- Safety Mechanical and Electrical Components included
We partner with a Motto Elevation S.L., a young, energetic and innovative company based in Spain that creates access solutions that meets customers’ requirements and satisfaction for construction, mining and oil and gas industries and also for use in wind power and port applications. Motto Elevation has a strong presence in Spain, France, Russia and the Middle East.
We distribute ML Series personnel elevator throughout Asia.
Specifications for Motto Elevation Personnel Elevators are as follows:
| General Data | ML03 | ML20 | ML30 |
|---|---|---|---|
| Max Load Capacity | 300 kg | 1000 kg | 2000 kg |
| Max No. of People | 3 | 10 | 20 |
| Elevation Speed | 18m/min | 25 m/min or 36 m/min | 25 m/min or 36 m/min |
| Maximum Height | 150 m | Standard mast 150 m or Reinforced mast 250 m | Standard mast 150 m or Reinforced mast 250 m |
| Cabin Access |
|
Vertical sliding door with 1 or 2 vents | Vertical sliding door with 1 or 2 vents |
| Max Distance between Anchors | 8 m | 6 m | 6 m |
| Max Wind Speed |
Working: 72 km/h Assembly / Disassembly: 45 km/h |
Working: 72 km/h Assembly / Disassembly: 45 km/h |
Working: 72 km/h Assembly / Disassembly: 45 km/h |
Please see product video here for more information

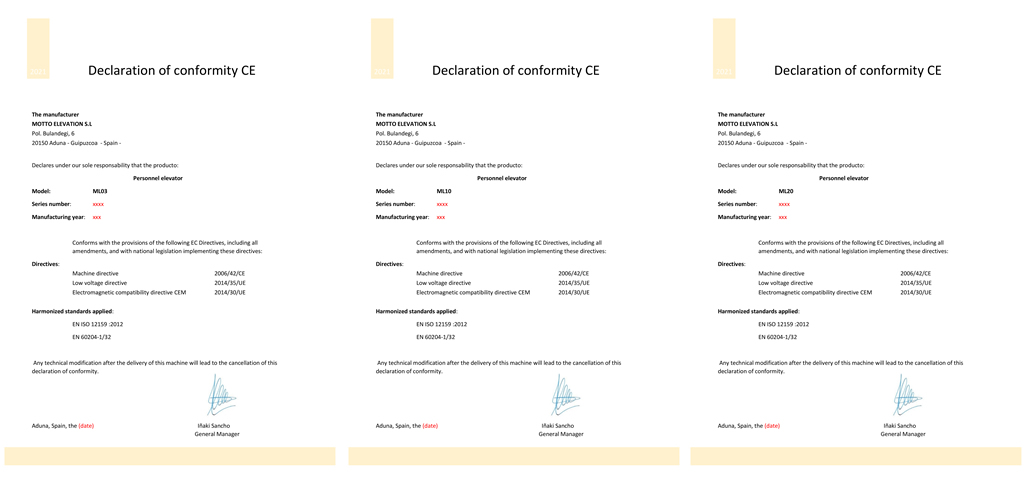

ML Series is declared to comply with European Directives and harmonised standards
