Mast Climbing Work Platforms
Unique Features:
- Square Masts for stability
- Able to configure to Customer's site requirements
- Safety Mechanical and Electrical Componenets included
We partner with a Motto Elevation S.L., a young, energetic and innovative company based in Spain that creates access solutions that meets customers’ requirements and satisfaction for construction, mining and oil and gas industries and also for use in wind power and port applications. Motto Elevation has a strong presence in Spain, France, Russia and the Middle East.
We provide rentals of Motto Elevation MM50 Mast Climbing Work Platforms in Singapore, and also distribute these platforms throughout Asia.
Specifications for Motto Elevation Mast Climbing Work Platforms MM50:
| General Data | Single Mast | Twin Mast |
|---|---|---|
| Lifting speed | 6 m/min or 10 m/min | 6 m/min or 10 m/min |
| Maximum height | 200 m | 200 m |
| Max. distance between anchors | 12 m | 12 m |
| Freestanding maximum height | 9 m | 9 m |
| Maximum platform length | 11.8 m | 34.7 m |
| Max. distance between mast axis | - | 21.6 m |
| Platform width | 1.3 m | 1.3 m |
| Max. telescopic extensions width | 1 m / 1.75 m / 2.5 m | 1 m / 1.75 m / 2.5 m |
| Decks (without floor) | 0.83m = 55 kg / 1.5 m = 80 kg | 0.83m = 55 kg / 1.5 m = 80 kg |
| Mast section Square | 560mm x 560mm x 1.5m = 80 kg | 560mm x 560mm x 1.5m = 80 kg |
| Drive unit weight (without stabilizers) | 1100 kg | 1100 kg |
| Maximum wind speed | Anchored = 55 km/h Freestanding / installation = 45 km/h | Anchored = 55 km/h Freestanding / installation = 45 km/h |
| Temperature range | -10 / +55 degrees Celsius | -10 / +55 degrees Celsius |
| Noise level in service | < 80 Db (A) IEC51 | < 80 Db (A) IEC51 |
| Main components hot dip galvanized |
Main Safety Devices for Motto Elevation Mast Climbing Work Platforms MM50:
| Mechanical Safety Components | Electrical Safety Components |
|---|---|
| 2 motors with gearbox and electromechanical brakes | Interlocking device on access door |
| 2 centrifugal brakes per drive unit | Top, bottom and emergency stops |
| Floating motor plate | Rack detector |
| Automatic self levelling in twin mast | Emergency stops |
| Emergency descent | Low voltage control |
| Top and bottom stops with buffers | Movement acoustic buzzer |
| Mast protector | Right / left drive unit selector |
| Anti slippery floor | Phases control relay |
| Motor protecting cover | Emergency stop push buttons at control panel and drive units |
| Metallic railing and telescopic railing on sides | Delayed starting, with acoustic signalling |
Please refer to this video for more information.

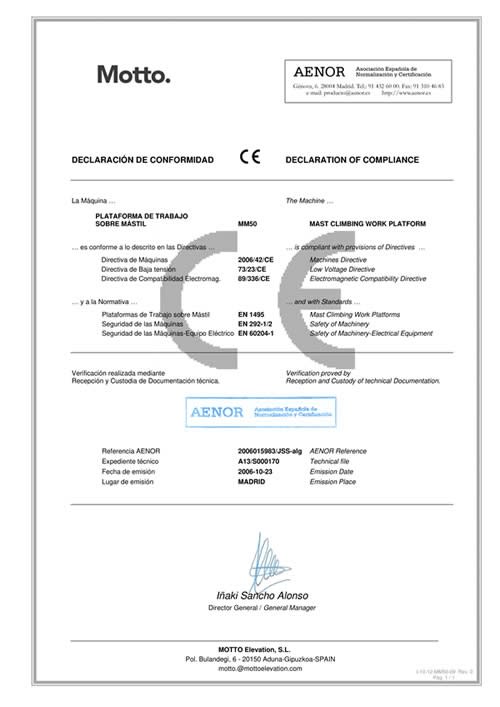

MM50 is CE marked and declared to comply with European Directives and harmonised standards
